Garage Door Hinge - 14 Gauge Steel - Individual

Standard garage door hinge in 14ga steel thickness. Choose your hinge based on where it goes on the door.

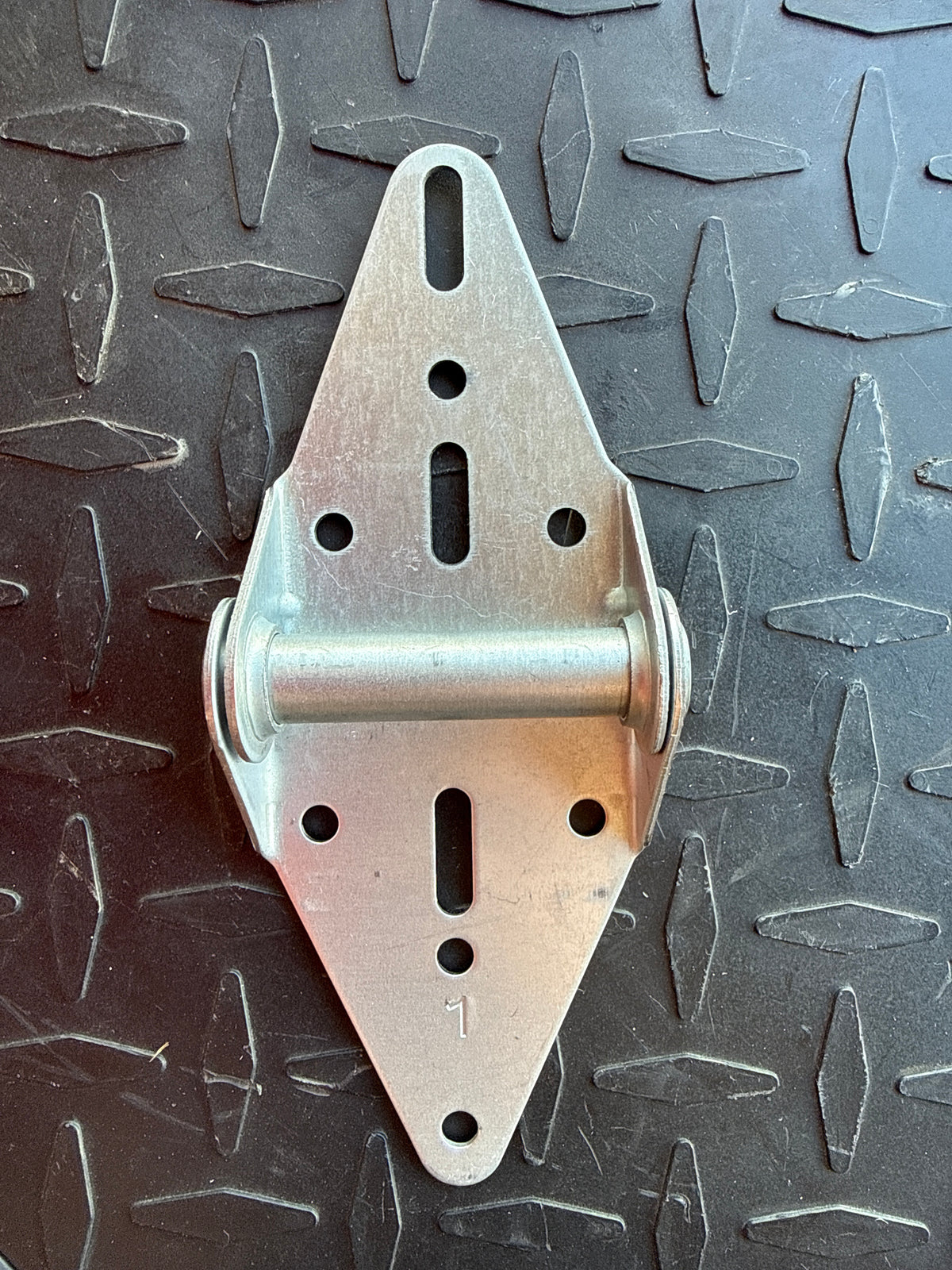

#1 Hinge - Use in all hinge locations where a roller is not present. It is also used with a roller in between the bottom section and one above it.

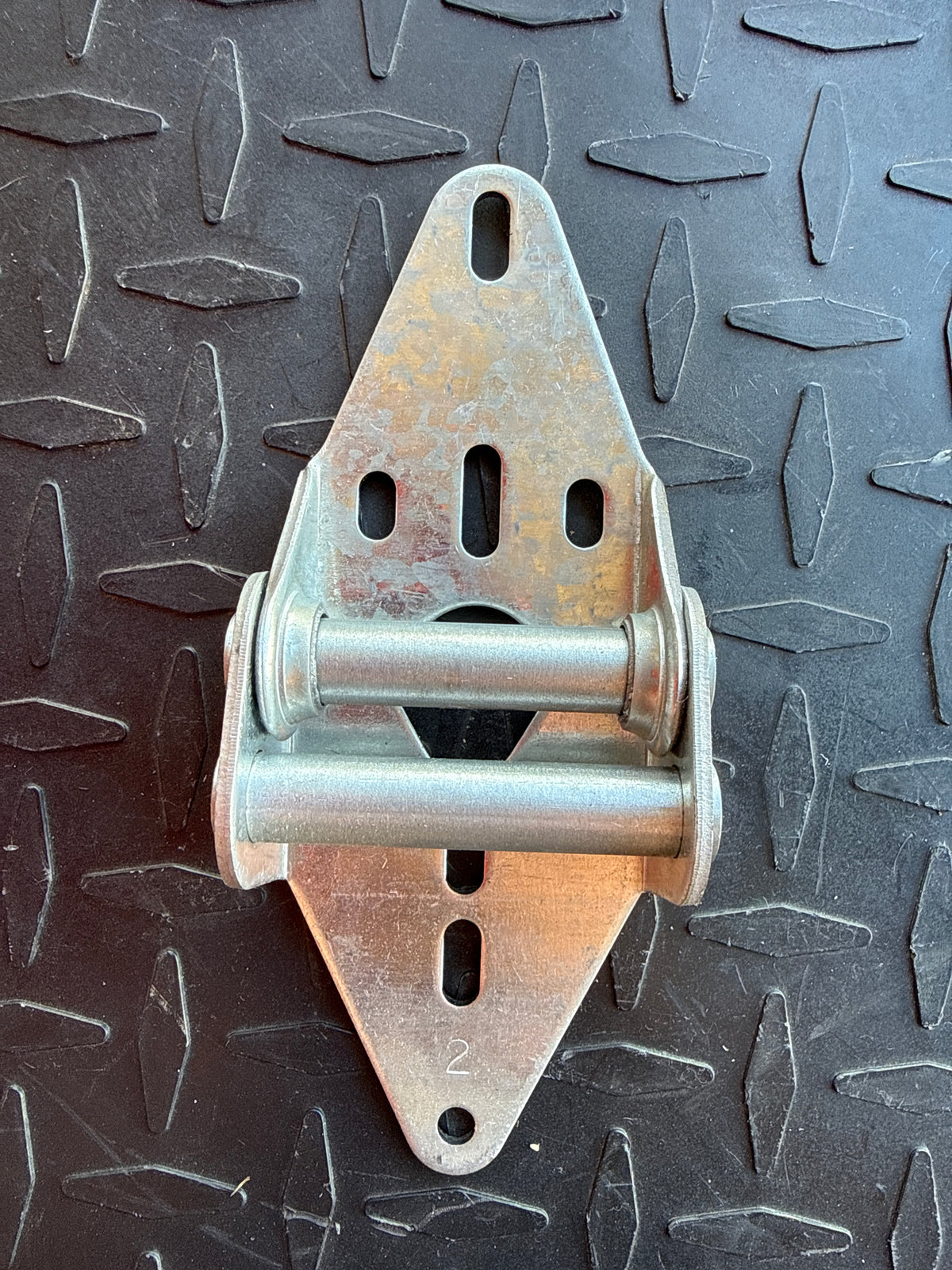

#2 Hinge - Holds a roller and is used between sections 2 and 3 from the bottom.

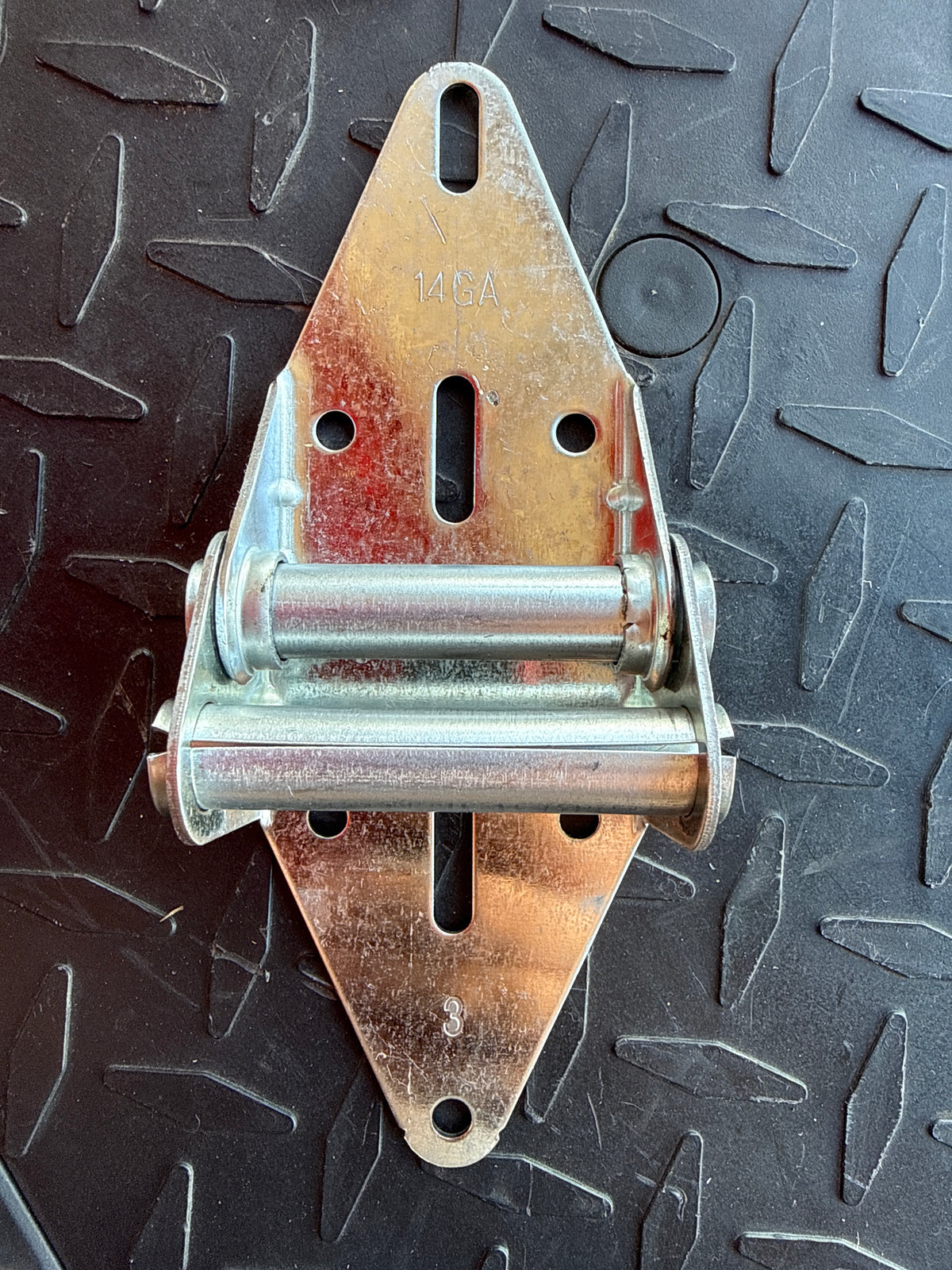

#3 Hinge - Holds a roller and is used between sections 3 and 4 from the bottom.

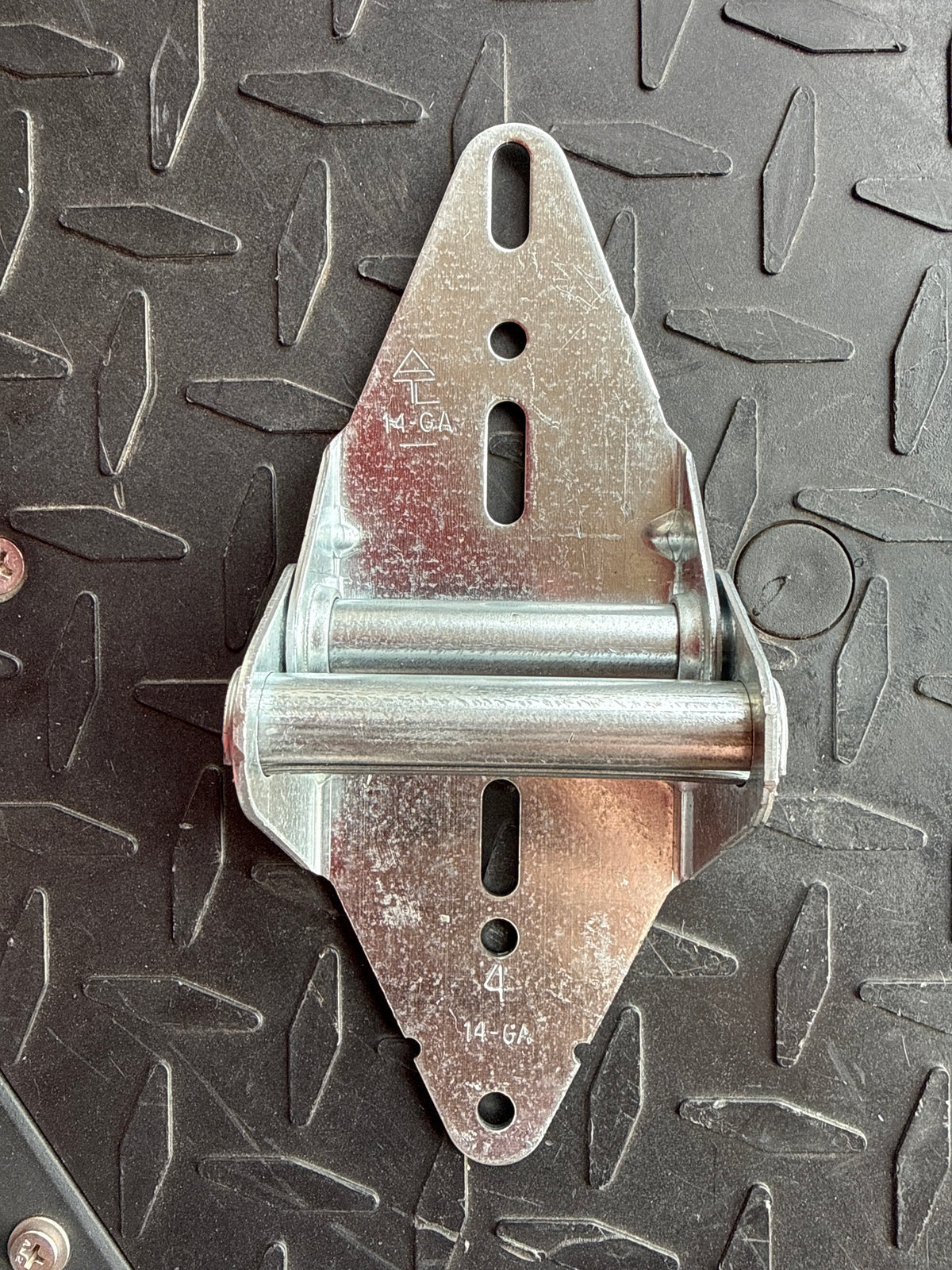

#4 Hinge (not in diagram) - Used only when you have an 8ft door. It holds a roller between sections 4 from the bottom and top section.
